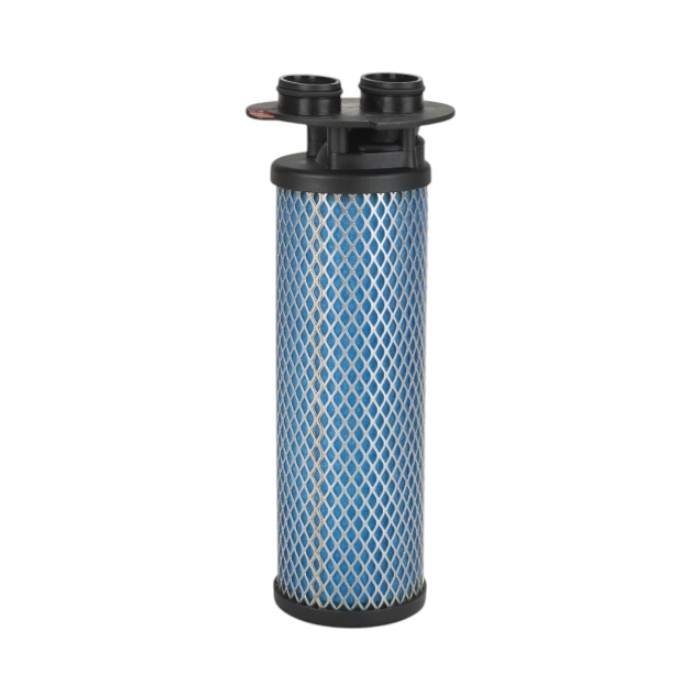

Donaldson filter element, V0600, silicone-free
Nominal flow rate at 7 bar: 600 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
Powerful prefiltration for maximum process reliability
The Donaldson Filter element V0600 is a highly efficient depth filter element for the reliable separation of oil and water aerosols as well as solid particles from compressed air and gases. Thanks to its innovative, wound depth filter medium, it offers outstanding dirt holding capacity with minimal differential pressure. In the silicone-free standard version with Viton seals, it is the ideal choice for process-critical applications in the automotive industry and painting technology.
Performance data & filtration properties
- Filtration type: Coalescence and particle filters for industrial use.
- Nominal flow rate: 600 m³/h (10 m³/min) at an operating pressure of 7 bar.
- Capture efficiency: Achieves a residual oil concentration of < 0.20 mg/m³ (at an inlet concentration of 3 mg/m³).
- Energy efficiency: Extremely low initial differential pressure of just 0.11 bar in dry condition.
- Validated quality: The performance data for achieving the compressed air quality classes in accordance with ISO 8573-1 are tested and confirmed in accordance with ISO 12500-1 and ISO 12500-3.
High-quality structure of the element
- Robust support structure: Inner and outer support shells made of stainless steel (1.4301) reliably protect the filter medium against pressure surges.
- Optimized drainage: A fixed coalescence jacket ensures a permanently stable structure and efficient drainage of separated liquids.
- Material quality: End caps made of glass fiber-reinforced polyamide in combination with stainless steel ensure optimum corrosion protection.
- Temperature range: Safe use at operating temperatures from +1 °C to +65 °C.
System compatibility
- Suitable for: Specially developed for use in the Donaldson DF Ultra filter housing (size 0600).
Typical areas of application
- Central processing: Protection of refrigeration and adsorption dryers.
- Endpoint filtration: Treatment of control, instrument and process air.
- Particle retention: Used as a dust filter behind adsorption dryers or activated carbon adsorbers.
- Surface finishing: Silicone-free treatment of compressed air for the highest painting quality.
| Filter type | V: Pre-filter / coarse filter |
| Nominal flow rate at 7 bar (m³/h) | 600 |
| Element type | DF |
| Connection type | DF connection |
