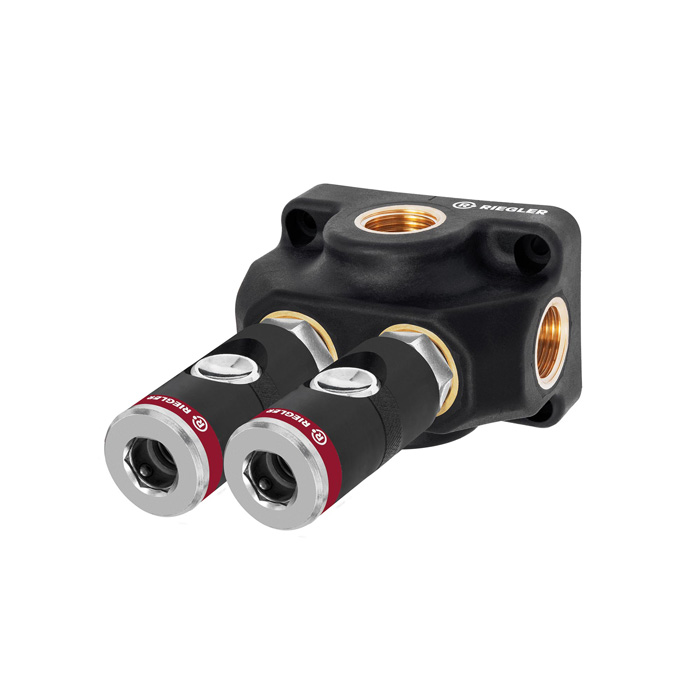

Universal junction box, 2 safety couplings NW 7.4, inlet G 1/2
Type number: 219005000
EAN: 4047322706582
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Universal junction box,2safety couplings NW7.4,inletG1/2,operating pressure max.12 bar,temp.air -10°C to 50°C,temp.water 1°C to 50°C
| Housing | glass fiber reinforced plastic PA6 GF 30 |
| Max. operating pressure | 12 bar |
| Operating temperature min. with air | -10 °C |
| Max. operating temperature in air | 50 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 50 °C |
| Tightening torque brass thread | 12 Nm |
| Tightening torque | 4 Nm |
| Width | 86 mm |
| Input thread | G 1/2 |
| Connection coupling | 2 x safety clutch |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
| Stand Material Compliance | 44621 |
| Height | 60 mm |
