Safety valve DN 10, brass, G 3/4 Set pressure 10.7 bar

Price:

37.96 €
    ​
English (US)
  2. Shop
  3. Safety Valves and Pressure Limiting Valves
  4. Safety valve DN 10, brass, G 3/4 Set pressure 10.7 bar

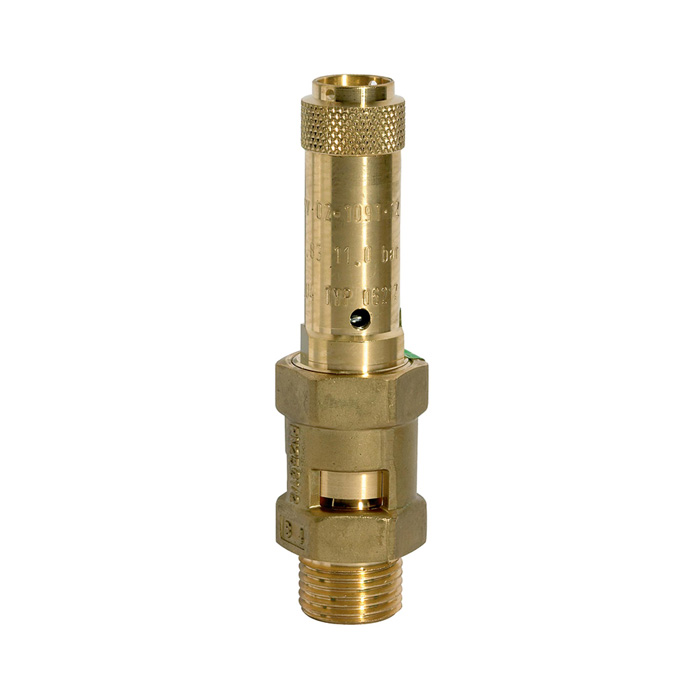

Safety valve, brass, G 1/2, response pressure 1.3 bar
Safety valve, brass, G 1/2, response pressure 1.3 bar
66.45 €
66.45 €
Safety valve DN 8, brass, G 1/2, response pressure 37 bar
Safety valve DN 8, brass, G 1/2, response pressure 37 bar
26.29 €
26.29 €

Safety valve DN 10, brass, G 3/4 Set pressure 10.7 bar

https://www.filcom-technik.de/web/image/product.template/276123/image_1920?unique=947d199

Type number: EFIL LX 12

EAN: 4047322736411

37.96 € 37.96 EUR 37.96 € VAT Included

49.08 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    206847
    Category :
    Safety Valves and Pressure Limiting Valves
    Weight :
    0.29 kg

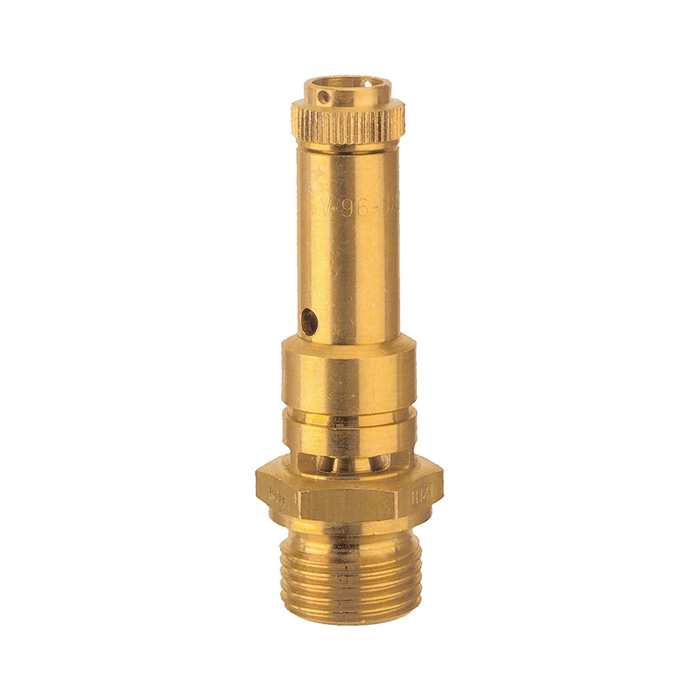

    Safety valve DN 10, brass, operating temperature -25 °C to 180 °C, G 3/4, SW 32, set pressure 10.7 bar, type-tested
    Housing Brass
    Sealing material FKM
    Operating pressure min. 0.2 bar
    Max. operating pressure 50 bar
    Operating temperature min. -25 °C
    Operating temperature max. 180 °C
    Thread G 3/4
    SW 32 mm
    Response pressure min. 10.7 bar
    A 32 mm
    C 95 mm
    D 16 mm
    Pressure spring Stainless steel
    Theme shop SAFETY
    Class name PLUS
    ​
