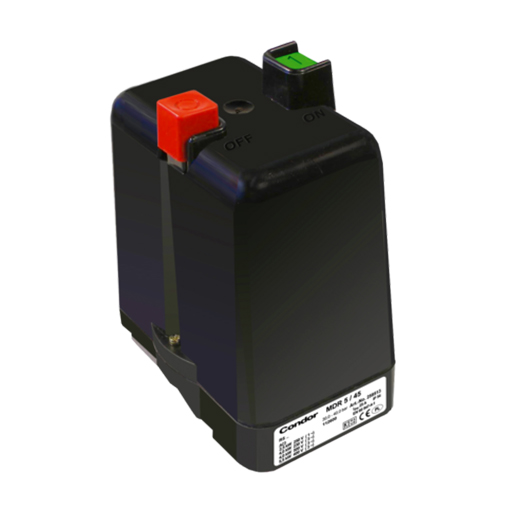

Condor Pressure Switch MDR 5/45-K 13-45 bar G 1/2" Alu
Condor MDR 5/45 bar, voltage three-phase current 400 V
Compressed air / water: pressure switch compressor / pressure switch pump
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor pressure switch MDR 5/45 bar EA 258513
Please note that an overcurrent relay is required for commissioning, see under "Accessories", otherwise the automatic on/off function will not work!
Three-phase version
Switching capacity 5.5
Pressure range 13.00 - 45.00 bar
3-pole (NC contact)
In accordance with EN 60947
The manufacturer reserves the right to make technical changes!
Only the EV5-H relief valve can be used for this pressure switch (see accessories)!
Pressure switch type: KAA AAAA 300 A400 XXX XX see further information under Documents.
For required relief valves, cable glands, covers for retrofitting, see "Accessories".
| Thread / connection | G 1/2" aluminum |
| Protection class | IP 54 |
| Motor switching capacity (kW) | 5.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 860 |
| Pressure range (bar) | 13-45 |
| Model range - Pressure switch | MDR 5 |
| On / Off switch button | Ja |
Product variants
| Product | Price | ||
|---|---|---|---|
![[256182] Condor Pressure Switch MDR 5/45 13-45 bar G 1/2" Alu](/web/image/product.template/217612/image_128/%5B256182%5D%20Condor%20Pressure%20Switch%20MDR%205-45%2013-45%20bar%20G%201-2%22%20Alu?unique=8382e99)
|
Condor MDR 5/45 bar, voltage three-phase current 400 V |
171.10 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

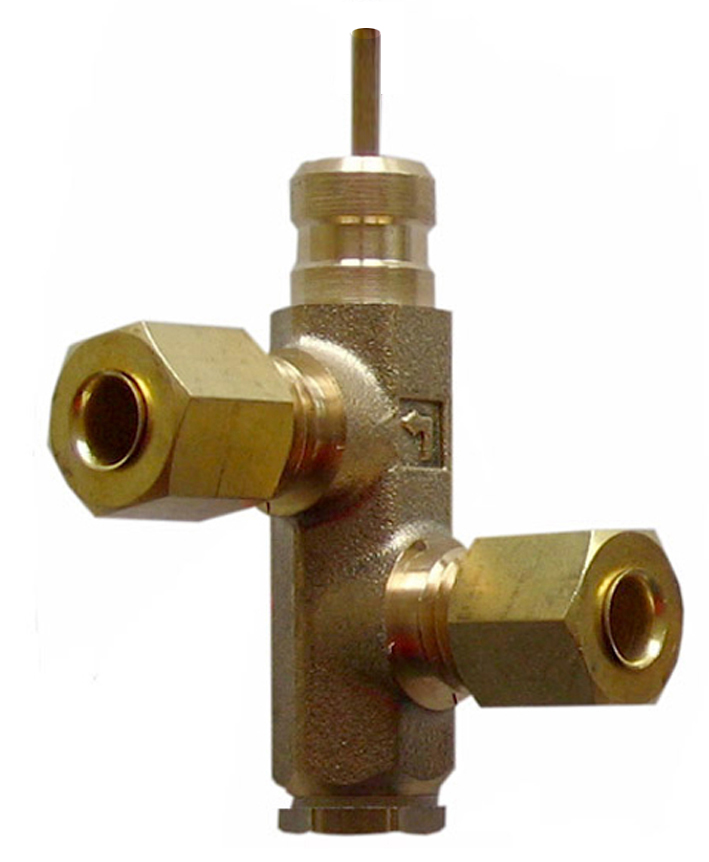

![[201915] Condor Unloader valve EV 5H with screw connection for 6 mm plastic or copper discharge tube, screw connection for vent port (for MDR-5/45 bar types)](/web/image/product.template/95977/image_128/%5B201915%5D%20Condor%20Unloader%20valve%20EV%205H%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube%2C%20screw%20connection%20for%20vent%20port%20%28for%20MDR-5-45%20bar%20types%29?unique=9fb4297)
|
Relief valve EV 5-H for Condor Condor MDR 5/45 pressure switch |
32.56 € | |
![[202028] Condor Thermal, 3-pole overload relay R5 0,86 - 1,50 A](/web/image/product.template/226368/image_128/%5B202028%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%200%2C86%20-%201%2C50%20A?unique=4638de6)
|
Overcurrent relay / motor protection relay R 5 / 1.5 for Condor MDR 5 pressure switch |
63.50 € | |
![[202035] Condor Thermal, 3-pole overload relay R5 1,50 - 2,45 A](/web/image/product.template/226369/image_128/%5B202035%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%201%2C50%20-%202%2C45%20A?unique=6e8499b)
|
Overcurrent relay / motor protection relay R 5 / 2.45 for Condor MDR 5 pressure switch |
63.50 € | |
![[202042] Condor Thermal, 3-pole overload relay R5 2,40 - 4,20 A](/web/image/product.template/226371/image_128/%5B202042%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%202%2C40%20-%204%2C20%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 4.2 for Condor MDR 5 pressure switch |
63.50 € | |
![[202059] Condor Thermal, 3-pole overload relay R5 4,00 - 7,00 A](/web/image/product.template/226372/image_128/%5B202059%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%204%2C00%20-%207%2C00%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 7.0 for Condor MDR 5 pressure switch |
63.50 € | |
![[202066] Condor Thermal, 3-pole overload relay R5 6,10 - 10,3 A](/web/image/product.template/226373/image_128/%5B202066%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%206%2C10%20-%2010%2C3%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 10.3 for Condor MDR 5 pressure switch |
66.07 € | |
![[202073] Condor Thermal, 3-pole overload relay R5 9,00 - 14,0 A](/web/image/product.template/226374/image_128/%5B202073%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%209%2C00%20-%2014%2C0%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 14.0 for Condor MDR 5 pressure switch |
82.73 € | |
![[202080] Condor Thermal, 3-pole overload relay R5 11,0 - 18,0 A](/web/image/product.template/226375/image_128/%5B202080%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%2011%2C0%20-%2018%2C0%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 18.0 for Condor MDR 5 pressure switch |
82.73 € | |
![[217527] Condor Cover with On/Off push-buttons (Only functions together with the thermal R5 overload relay)](/web/image/product.template/217945/image_128/%5B217527%5D%20Condor%20Cover%20with%20On-Off%20push-buttons%20%28Only%20functions%20together%20with%20the%20thermal%20R5%20overload%20relay%29?unique=8382e99)
|
Condor cover for Condor control pressure switch MDR 5 |
25.70 € | |
![[230045] Condor Mounting bracket](/web/image/product.template/95986/image_128/%5B230045%5D%20Condor%20Mounting%20bracket?unique=9fb4297)
|
Condor mounting bracket for Condor pressure switch MDR 5 and MDR 53 |
14.16 € | |
![[230052] Condor Cover H5 without On/Off push buttons for MDR 5](/web/image/product.template/95987/image_128/%5B230052%5D%20Condor%20Cover%20H5%20without%20On-Off%20push%20buttons%20for%20MDR%205?unique=e6d34e3)
|
Condor cover for Condor control pressure switch MDR 5 and MDR 53 |
18.56 € | |
![[269496] Condor Grommet WN M20 for cable gland MDR 5](/web/image/product.template/95980/image_128/%5B269496%5D%20Condor%20Grommet%20WN%20M20%20for%20cable%20gland%20MDR%205?unique=9fb4297)
|
Condor choke nipple for Condor cable glands for Condor pressure switches MDR 5 and MDR 53 |
5.24 € | |
![[269502] Condor Screw plug M20](/web/image/product.template/95981/image_128/%5B269502%5D%20Condor%20Screw%20plug%20M20?unique=4638de6)
|
Condor screw plug M 20 for Condor pressure switch MDR 5 and MDR 53 |
2.86 € | |
![[269519] Condor Cable gland M20 L with strain relief, clamping range 10-14 mm](/web/image/product.template/95984/image_128/%5B269519%5D%20Condor%20Cable%20gland%20M20%20L%20with%20strain%20relief%2C%20clamping%20range%2010-14%20mm?unique=9fb4297)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.50 € | |
![[269526] Condor Cable gland M20 LK with strain relief and cable support, clamping range 10-14 mm](/web/image/product.template/95985/image_128/%5B269526%5D%20Condor%20Cable%20gland%20M20%20LK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%2010-14%20mm?unique=9fb4297)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.85 € | |
![[269533] Condor Cable gland M20 Z with strain relief, clamping range 6-12 mm](/web/image/product.template/95982/image_128/%5B269533%5D%20Condor%20Cable%20gland%20M20%20Z%20with%20strain%20relief%2C%20clamping%20range%206-12%20mm?unique=9fb4297)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.50 € | |
![[269540] Condor Cable gland M20 ZK with strain relief and cable support, clamping range 6-12 mm](/web/image/product.template/95983/image_128/%5B269540%5D%20Condor%20Cable%20gland%20M20%20ZK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%206-12%20mm?unique=4638de6)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.85 € | |
