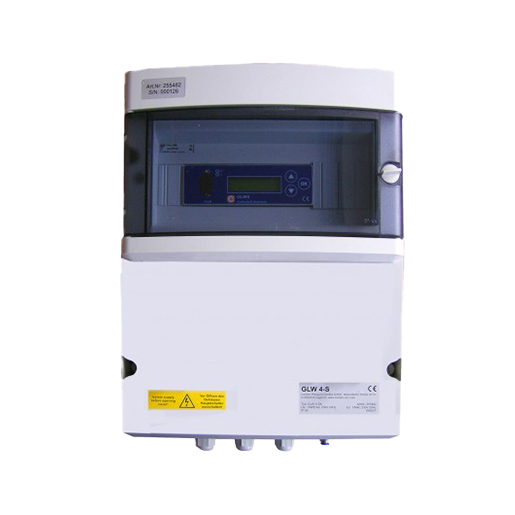

Condor Complete device GLW 4-S, pre-wired in plastic enclosure without accessories
Condor basic load changeover switch GLW 4
in plastic housing, (dimensions: 420 x 300 x 170 mm)
on top-hat rail, pre-wired with internal terminal blocks and wiring diagram.
Article no. 255475 has been replaced by article no. 502111
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor basic load changeover switch GLW 4 in plastic housing, (dimensions: 420 x 300 x 170 mm) on top-hat rail, pre-wired with internal terminal blocks and wiring diagram.
The following functions can be activated:
- Internal pressure transducer from 0 to 16 bar
- Connection option for an external pressure transducer, two-wire technology 4 to 20 mA
- Free programming of an integrated timer (control of up to 6 profiles)
- Free assignment of base load and load change function, i.e. the base load compressor runs
without participating in the load change. Only the load change compressors are changed.
- Free programming of a ball valve control for max. three compressors
- Direct switchover after the load change time has elapsed
- Four digital inputs, e.g. for the operating hours
- Input: Bypass timer
- Input: Remote release
- Password protection for the parameters
- Units switchable in bar/psi
