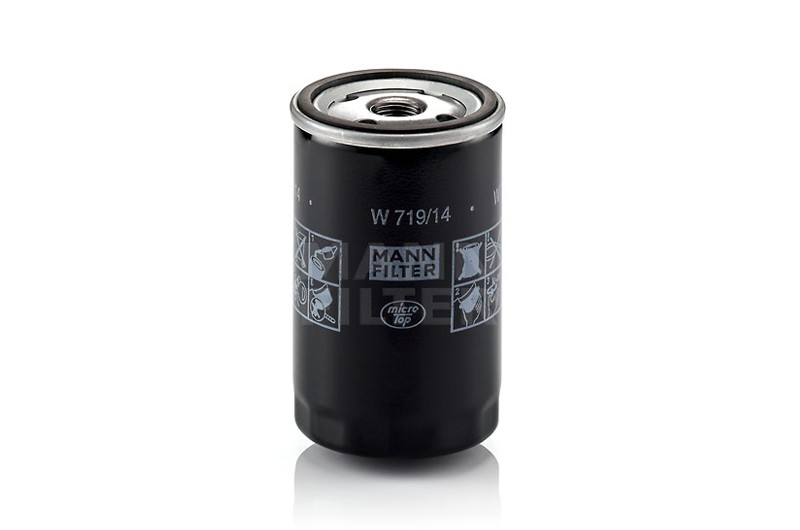

Mann Filter Oil filter W 719/14
Mann Filter spin-on filters used for oil filtration in the main flow.
On the raw side, the oil flows in through the holes on the outside of the filter base
and exits again through the central thread.
For example,
bypass valves, backflow preventers, riser pipes and the like are integrated into the spin-on filters as required.
We supply Mann filters as original goods from the Mann and Hummel industrial filter range for compressors and vacuum pumps
Only available in limited quantities!
Mann Filter
The globally renowned brand MANN-FILTER offers a comprehensive filter product portfolio in OEM quality for the aftermarket. With innovative solutions for new challenges in filtration, MANN-FILTER develops the filters of tomorrow for today's vehicles and machinery.
| A - Outer Ø / length (mm) | 76 |
| B - Inside Ø top / width (mm) | 62 |
| C - Inner Ø bottom (mm) | 71 |
| Height (mm) | 123 |
| G - Outlet / Thread size | 3/4 - 16 UNF |
| Opening pressure bypass valve (bar) | 2,5 |
| Non-return valve | 2 |
