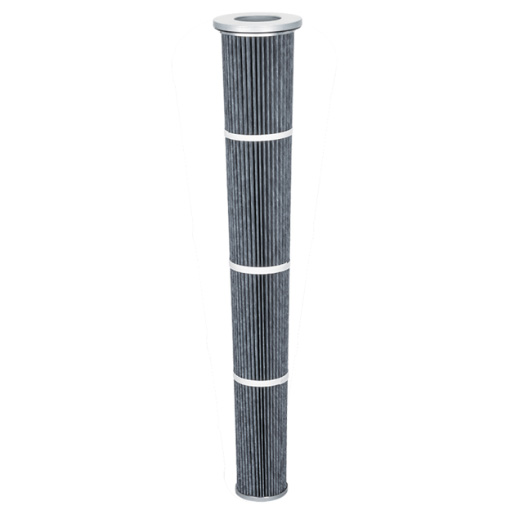

Filtration Group dust filter element 852 054 TI 07/1-2.5
Conical dust filter element
Diameter:115 mm
Filter material: Polyester fleece with PTFE membrane, electrically dissipative
Filter area: 2.5 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Dust filter element 852 054 TI 07/1-2.5 / 70328072
Note:
Deviations in the volume flow values are possible due to the type of dust and gas composition.
| Outer diameter (mm) | 165 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 100 x 4 |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Wrinkle stabilisation | Banderole |
| Filter material | TI 07/1 |
| Height (mm) | 988 |
| Inner diameter (mm) | 90 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
