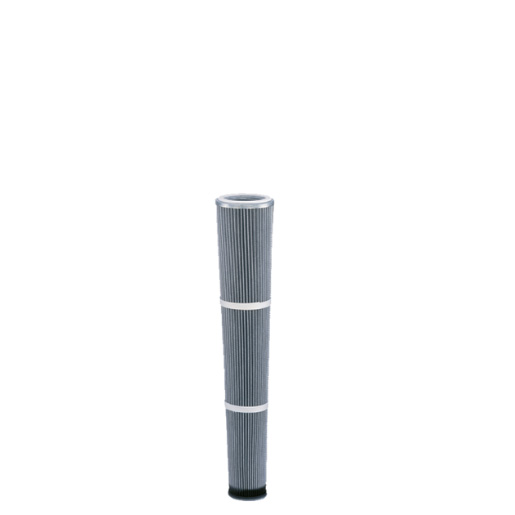

Filtration Group dust filter element 852 903 TI 07/1-1,0 V4A FDA
Conical dust filter element
Diameter:120 mm
Filter material: Polyester fleece with PTFE membrane, electrically dissipative
Filter area: 1 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
| Outer diameter (mm) | 120 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 72 x 5 |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Wrinkle stabilisation | Banderole |
| Filter material | TI 07/1 |
| Height (mm) | 600 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Silicone |
