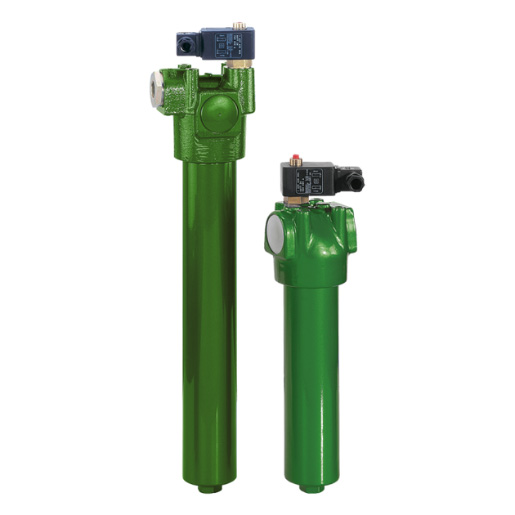

Filtration Group High pressure filter Pi 423016-010 FL
High-pressure filter Pi 423 DIN 2455
Nominal size 16 l/min,
flange version
including:
- Hole for maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) High-pressure filter Pi 423016-010 FL / 70382566
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle high-pressure filter Pi 42316-1 FL without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Flange ISO 6162-2 |
| Seal material | NBR/PTFE/Cu |
| Contact type Contamination indicator | screwed-in blind plug for VA |
| Bypass opening pressure (bar) | 7 |
| Filter housing material | Steel |
| Operating temperature | -10°C bis +120°C |
| Max. Operating pressure (bar) | 315 |
| Connection size | DN 38 |
| Nominal size | 160 |
| Filter head material | GGG |
