Filtration Group Dust filter element 852 029 TI 15-2.2

https://www.filcom-technik.de/web/image/product.template/52245/image_1920?unique=1194214

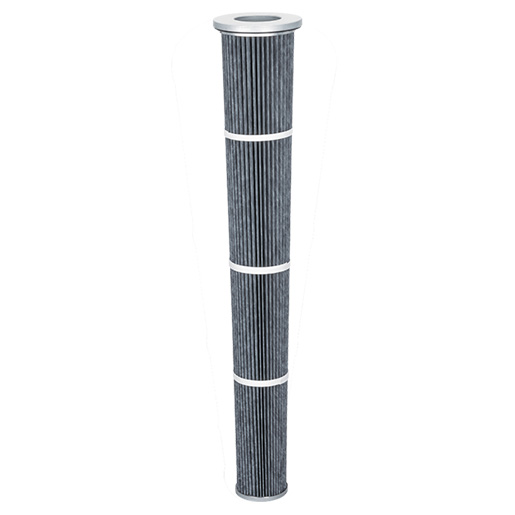

Conical dust filter element

153.51 € 153.51 EUR 153.51 € VAT Included

129.00 € VAT Included

(153.51 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70526852

Category :

Dedusting Filter Media

Weight :

1.95 kg

Filtration Group (formerly MAHLE) Dust filter element 852 29 TI 15-2.2 / 7526852

  • Lower filter surface load due to reduced inflow velocity
  • Even cleaning down to the lower area
  • 3 % more free area - thus improved dust sedimentation
  • Longer element service life thanks to improved cleaning line

    • Notes:
    - The value of the volume flow is based on a filter surface load of 1.7 m³/m² min
    - The initial pressure loss of > 25 pa depends on the volume flow and filter material
    - The operating temperature depends on the medium/material

    Mounting diameter (mm) 159
    Outer diameter (mm) 186
    Element fastening not specified / other
    Element shape Conical
    Element type 852 Series
    End disc material Plastic end disk PA
    Wrinkle stabilisation Banderole
    Filter material TI 15
    Height (mm) 612
    Inner diameter (mm) 97
    Installation Ringstrasse side
    Medium Air
    Seal material Polyurethane (PUR)
