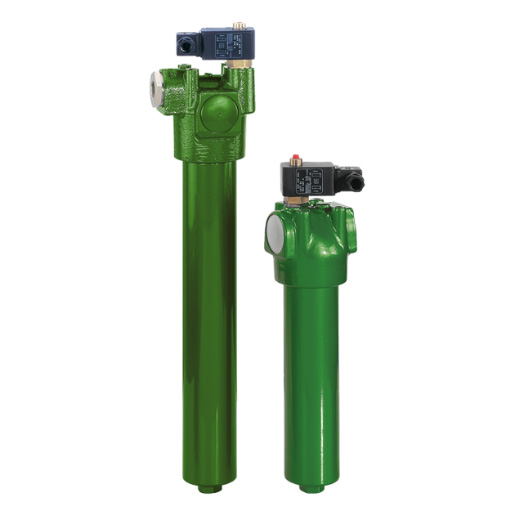

Filtration Group High pressure filter Pi 422016/24-015 / 70535652
High-pressure filter Pi 422 DIN 2455
Nominal size 16 l/min,
side inlet, top outlet
Includes:
- Electrical maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) High-pressure filter Pi 422016/24-015 / 70535652
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle high-pressure filter Pi 42216/24-15 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Contact type Contamination indicator | Schliesser / Oeffner |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | elektrisch / mechanisch |
| Type Contamination indicator | VA Differenzdruck |
| Verschmutzungsanzeige | ja |
| Filter housing material | Stahl |
| Seal material | NBR/PTFE |
| Betriebstemperatur (°C) | -10°C bis +120°C |
| Anschlussart | Gewinde ISO 228 |
| Nenngröße | 160 |
| Connection size | G 11/4 |
| Werkstoff Filterkopf | GGG |
| Max. Operating pressure (bar) | 400 |
