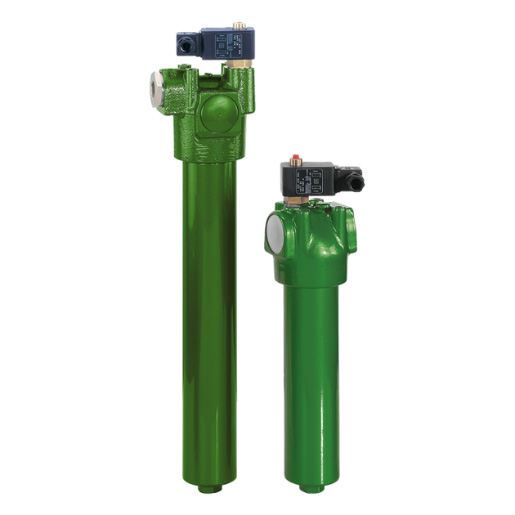

Filtration Group High pressure filter Pi 422025/21-013 / 70535658
High-pressure filter Pi 422 DIN 2455
Nominal size 25 l/min,
side inlet, top outlet
Includes:
- Bypass
- Electrical maintenance indicator
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) High-pressure filter Pi 422025/21-013 / 70535658
Important note:
We supply the Mahle high-pressure filter Pi 42225/21-13 without the filter element.
For suitable filter elements and accessories, see "Accessories".
Bypass opening pressure (bar) | 7 |
Contact type Contamination indicator | Schliesser / Oeffner |
Display pressure of contamination indicator (bar) | 5 |
Evaluation of pollution indicators | elektrisch / mechanisch |
Type Contamination indicator | VA Differenzdruck |
Verschmutzungsanzeige | ja |
Filter housing material | Stahl |
Seal material | NBR/PTFE |
Betriebstemperatur (°C) | -10°C bis +120°C |
Anschlussart | Gewinde ISO 228 |
Nenngröße | 250 |
Connection size | G 11/2 |
Werkstoff Filterkopf | GGG |
Max. Operating pressure (bar) | 400 |
