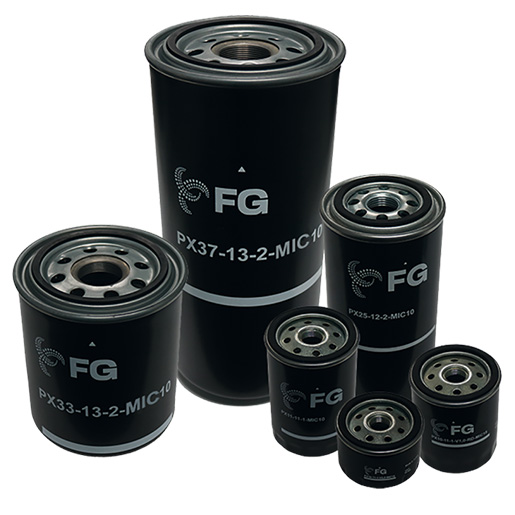

Filtration Group screw-on cartridge PX37-13-2-Mic10 (formerly HC 34)
Screw-on cartridge PX37-13-2-Mic1 (formerly HC 34)
for low-pressure filters
rated size 16 l/min
filter material cellulose
filter fineness 1 µm
rated pressure 16 bar
filter surface area 135 cm²
Item no.: 7754194 has been replaced by item no.: 754154
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Screw-on cartridge PX37-13-2-Mic1 (formerly HC 34) / 754154
| Outer diameter (mm) | 136.3 |
| Outer seal diameter (mm) | 111 |
| Inner seal diameter (mm) | 100 |
| Filter fineness (micrometres) | 10 |
| Filter material | Cellulose |
| Thread designation | 11/2-16UN-2B |
| Nominal height (mm) | 308 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 16 |
