Filtration Group KFWA 1 MAIN /C20W0-A1A / E72428149
Volume flow max.: 800 l/h | Operating pressure: 6 bar | Element installation | Supply voltage: 230 V
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration and separation of water and solids from diesel fuels
- Filtration and water separation in one system
- Residual water content less than 70 ppm free water content
- Low maintenance requirement

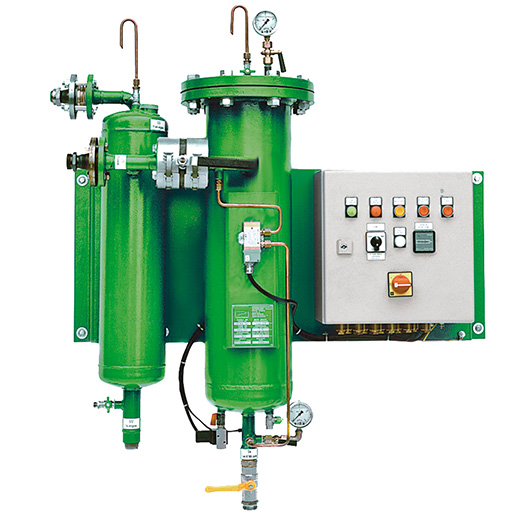

The KFWA is used for the filtration and separation of fuels. The system is supplied in two parts (pump module / maintenance module) for better adaptation to on-site conditions.
| Max. Operating pressure (bar) | 6 |
| Flow rate/volume flow filter speed (l/h) | max. 800 |
| Test pressure (bar) | 9 |
| Volume pressure vessel | 10 l |
| Volume pressure vessel 2 | 10 l |
| Operating temperature | +2°C bis +45°C |
| Method of use | MAIN |
| Operating pressure (bar) | 3 |
| Color/coating | RAL 5019 |
| Element installation | JA |
| Filter fineness (micrometres) | 19 |
| Differential pressure (bar) | 2 |
| Supply voltage (V) | 230 |
| Acceptances | 3.1. |
