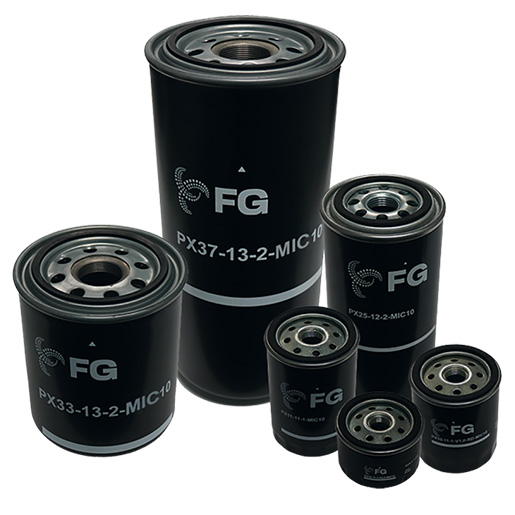

Filtration Group PX25-12-3-V2,5-MIC10 (ex. Spin-on cartridge OC 169)
Screw-on cartridge PX25-12-3-V2.5-MIC1
(formerly OC 169) for low-pressure filters
Nominal size 63 l/min
Filter material cellulose
Filter fineness 1 µm
Nominal pressure 25 bar
Filter surface area 544 cm²
including:
- Bypass 2.5 bar
Art. no. 7752511 has been replaced by art. no.: 72456722
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) spin-on cartridge OC 169 spin-on oil filter / 72456722
| Outer diameter (mm) | 93 |
| Outer seal diameter (mm) | 72 |
| Inner seal diameter (mm) | 62 |
| Filter fineness (micrometres) | 10 |
| Filter material | Cellulose |
| Thread designation | 1"-12UNF-2B |
| Nominal height (mm) | 212.5 |
| Opening pressure (bar) | 2.5 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 25 |
| Filter material | Zellulose |
