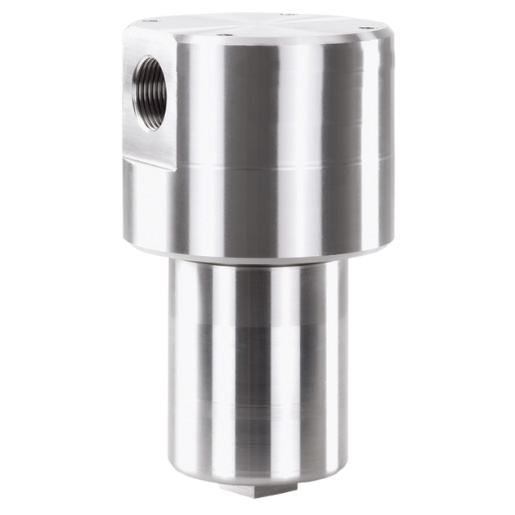

Filtration Group High pressure filter Pi 48025-015
Stainless steel high-pressure filter Pi 48
Nominal size 25 l/min,
includes:
- Electrical maintenance indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) High-pressure filter Pi 48025-015 / 76109284
Low space requirement due to compact design
Modular system for optimum filter selection
Electrical maintenance indicator
Minimal pressure loss due to streamlined design of the components
Available with high-efficiency PS filter elements to DIN 2455
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High dirt holding capacity and differential pressure stability of the elements
Important note:
We supply the Mahle Pi 4825-15 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Filter housing material | 1.4401/1.4404 |
| Filter head material | 1.4401/1.4404 |
| Contact type Contamination indicator | Closer / Opener |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | electrical / mechanical |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR/PTFE |
| Operating temperature | -10°C bis +120°C |
| Connection type | Thread ISO 228 |
| Nominal size | 250 |
| Connection size | G 11/2 |
| Max. Operating pressure (bar) | 450 |
