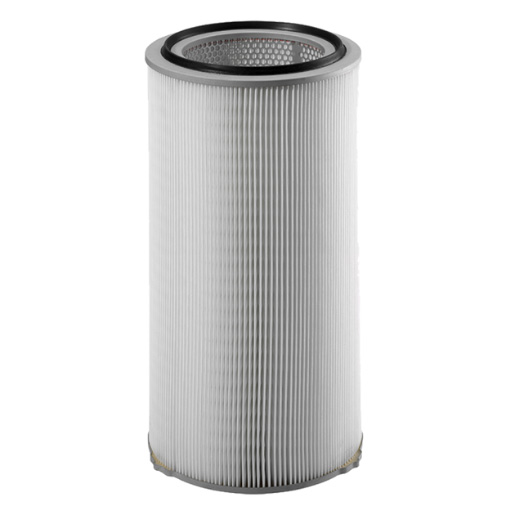

Filtration Group dust filter element 852 908 TI 26-10 V4A Speicherelement
Cylindrical dust filter element
Diameter:160 mm
Filter material: Glass fiber laminated on both sides
Filter area: 10 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Dust filter element 852 98 TI 26-1 V4A Storage element / 76137244
Note:
Deviations in the volume flow values are possible due to the type of dust and gas composition.
| Outer diameter (mm) | 328 |
| Element fastening | Tie rod |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 26 |
| Height (mm) | 600 |
| Inner diameter (mm) | 216 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Polyurethane (PUR) |
