Filtration Group Low pressure filter Pi 23040/12-068 / 76321004

Price:

2,064.79 €

English (US)
  2. Shop
  3. Filtration Group Low Pressure Filter
  4. Filtration Group Low pressure filter Pi 23040/12-068 / 76321004
Filtration Group Low pressure filter Suction filter Pi 2214-060
Filtration Group Low pressure filter Suction filter Pi 2214-060
142.47 € 142.47 €
Filtration Group Low pressure filter Pi 23040/12-058 / 76320964
Filtration Group Low pressure filter Pi 23040/12-058 / 76320964
2,166.28 € 2,166.28 €

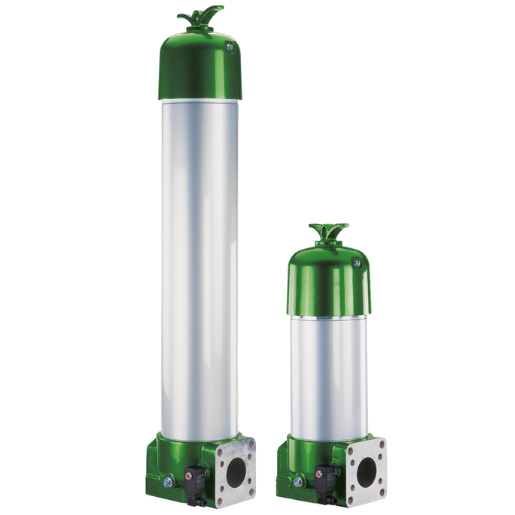

Filtration Group Low pressure filter Pi 23040/12-068 / 76321004

https://www.filcom-technik.de/web/image/product.template/233112/image_1920?unique=e7a56e7

Low-pressure filter Pi 23
Nominal size 8 l/min
Includes:
- Visual maintenance indicator
- Bottom inlet

2,064.79 € 2064.79 EUR 2,064.79 € VAT Included

2,116.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

76321004

Category :

Filtration Group Low Pressure Filter

Weight :

0.01 kg

Filtration Group (formerly MAHLE) Low pressure filter Pi 23040/12-068 / 76321004

  • Intended for installation in pipes
  • Optimum filter selection thanks to modular system
  • Minimal pressure loss due to streamlined design of the components
  • Visual maintenance indicator
  • Bottom entrance
  • Available with high-efficiency PS filter elements
  • High dirt holding capacity and differential pressure stability of the elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded

    Important note:
    We supply the Mahle low-pressure filter Pi 234/12-68 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange
    Connection size SAE 3, 3000 psi
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators optical
    Operating temperature -10°C bis +120°C
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 40
    Nominal size 800
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material GAL
    FG-Datenblatt_Pi230_NG1400_de
    Download
