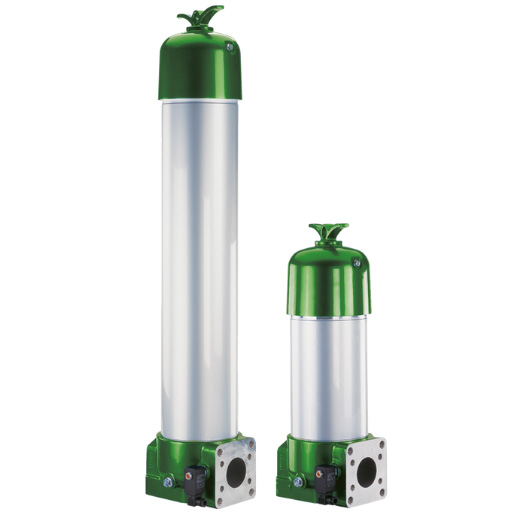

Filtration Group Low pressure filter Pi 230200/11-057 / 76321103

Low-pressure filter Pi 23 DIN 2455
Nominal size 12 l/min
Includes:
- Bypass
- Visual maintenance indicator
- Bottom inlet

2,352.65 € 2352.65 EUR 2,352.65 € VAT Included

2,411.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

76321103

Category :

Filtration Group Low Pressure Filter

Weight :

0.01 kg

Filtration Group (formerly MAHLE) Low pressure filter Pi 230200/11-057 / 76321103

Intended for installation in pipes

Optimum filter selection thanks to modular system

Minimal pressure loss due to streamlined design of the components

Bypass

Visual maintenance indicator

Bottom entrance

Available with high-efficiency PS filter elements

High dirt holding capacity and differential pressure stability of the elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

Important note:
We supply the Mahle Pi 232/11-57 low-pressure filter without the filter elements.
For this nominal size, 2 filter elements are required per housing.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange
Connection size	SAE 3, 3000 psi
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	40
Nominal size	1200
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBAR
Filter housing material	ALU
Filter head material	GAL

FG-Datenblatt_Pi230_NG1400_de

Download
