Filtration Group dust filter element 852 902 TI 08-0,5

Price:

94.34 €

Filtration Group dust filter element 852 902 TI 07/1-0,5 V4A FDA
Filtration Group dust filter element 852 902 TI 07/1-0,5 V4A FDA
255.14 € 255.14 €
Filtration Group dust filter element 852 902 TI 08-0,5 V4A
Filtration Group dust filter element 852 902 TI 08-0,5 V4A
158.03 € 158.03 €

Filtration Group dust filter element 852 902 TI 08-0,5

https://www.filcom-technik.de/web/image/product.template/233140/image_1920?unique=aec368c

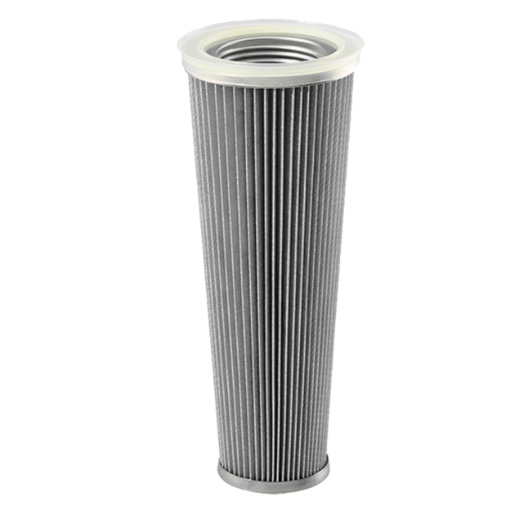

Conical dust filter element

Diameter:160 mm

Filter material: Polyester fleece with PTFE membrane, electrically dissipative

Filter area: 0.5 m²

94.34 € 94.34 EUR 94.34 € VAT Included

99.10 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets


Product no. :

76353510

Weight :

0.50 kg

Filtration Group (formerly MAHLE) Dust filter element 852 902 TI 08-0.5 / 76353510

  • Lower filter surface load due to reduced inflow velocity
  • Even cleaning down to the lower area
  • 3 % more free area - thus improved dust sedimentation
  • Longer element service life thanks to improved cleaning line
  • Notes:
    - Deviations in the volume flow values are possible due to the type of dust and gas composition.
    - The operating temperature depends on the medium/material.

    Outer diameter (mm) 120
    Electrostatic discharge capability yes
    Element fastening Rd 72 x 5
    Element shape Conical
    Element type 852 Series
    End disc material Sheet metal end plate
    Filter material TI 08
    Height (mm) 300
    Inner diameter (mm) 68
    Installation Raw gas side
    Medium Air
    Seal material Felt (polyester)
    FG-Datenblatt_fg-120nk-de
    Download
