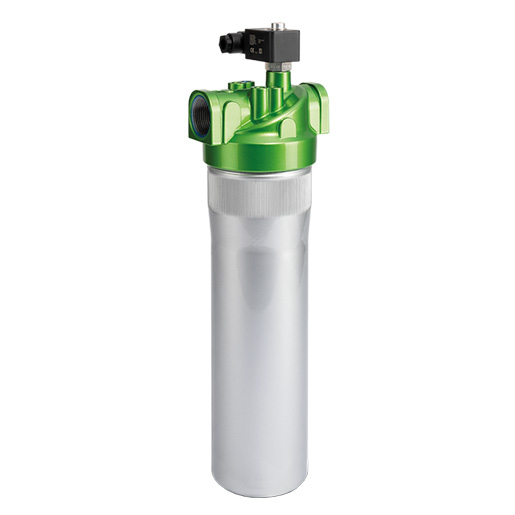

Filtration Group Low pressure filter PI 2005-069
Low-pressure filter Pi 2,
rated size 5 l/min,
includes:
- Bypass
- Electrical maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Low-pressure filter Pi 25-69 / 77665177
Intended for installation in pipes
Modular system for optimum filter selection
Low space requirement due to compact design
Minimal pressure loss due to streamlined design of the components
Version with threaded connections
Electrical maintenance indicator
Available with high-efficiency PS filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High differential pressure stability and dirt holding capacity of the elements
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded
Important note:
We supply the Mahle Pi 25-69 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G1/2 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -30°C bis +120°C |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 63 |
| Nominal size | 50 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
