Filtration Group Low pressure filter Pi 2202-068

Price:

179.93 €
    ​
English (US)
  2. Shop
  3. Filtration Group Low Pressure Filter
  4. Filtration Group Low pressure filter Pi 2202-068
Filtration Group Low pressure filter PI 2202-060 G 1/4
Filtration Group Low pressure filter PI 2202-060 G 1/4
152.32 € 152.32 €
Filtration Group Low pressure filter Pi 2202-069
Filtration Group Low pressure filter Pi 2202-069
248.90 € 248.90 €

Filtration Group Low pressure filter Pi 2202-068

https://www.filcom-technik.de/web/image/product.template/55722/image_1920?unique=d254472

Low-pressure filter Pi 222-68
Nominal size 25 l/min
Includes:
- Visual maintenance indicator

179.93 € 179.93 EUR 179.93 € VAT Included

180.00 € VAT Included

(179.93 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77665664

Category :

Filtration Group Low Pressure Filter

Weight :

0.45 kg

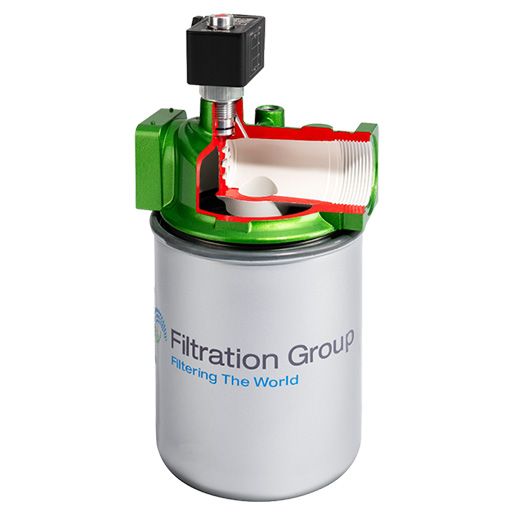

Filtration Group (formerly MAHLE) Low-pressure filter Pi 222-68 / 77665664

  • Intended for installation in pipes
  • Modular system for optimum filter selection
  • Flow-optimized design of the components, resulting in minimal pressure loss
  • Compact design means less space required
  • Visual maintenance indicator
  • Version with threaded connections
  • Available with high-efficiency Mic or Sm-x filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded

    Important note:
    We supply the Mahle Pi 222-68 low-pressure filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G1/2
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Max. Operating pressure (bar) 10
    Nominal size 25
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter head material ALU
    ​
