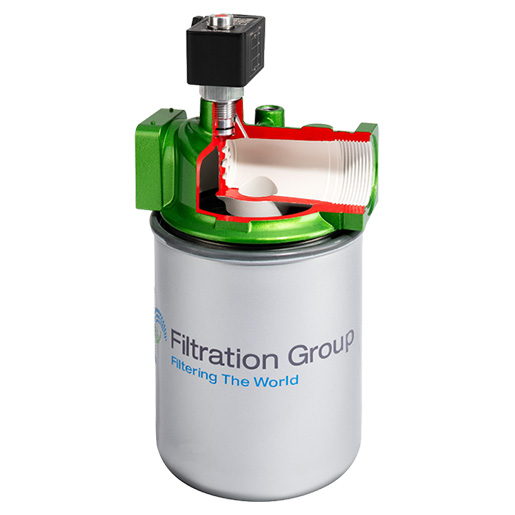

Filtration Group Low pressure filter Pi 2205-058
Low-pressure filter Pi 225-58
Nominal size 63 l/min
Includes:
- Bypass
- Electrical maintenance indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low pressure filter Pi 225-58 / 7766585
Intended for installation in pipes
Modular system for optimum filter selection
Flow-optimized design of the components, resulting in minimal pressure loss
Compact design means less space required
Bypass
Electrical maintenance indicator
Version with threaded connections
Available with high-efficiency Mic or Sm-x filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High dirt holding capacity and differential pressure stability of the elements
Important note:
We supply the Mahle Pi 225-58 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -10°C bis +120°C |
| Bypass valve Opening pressure (bar) | 3,5 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 10 |
| Nominal size | 63 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter head material | ALU |
