Filtration Group Low pressure filter PI 2205-060

Low-pressure filter Pi 225-6
Nominal size 63 l/min
- without bypass and visual/electrical maintenance indicator

Suction filter Pi 225-6
rated size 25 l/min,
- without bypass and vacuum switch / vacuum gauge

86.06 € 86.06 EUR 86.06 € VAT Included

88.20 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77665813

Category :

Filtration Group Low Pressure Filter

Weight :

0.28 kg

Description
Specifications

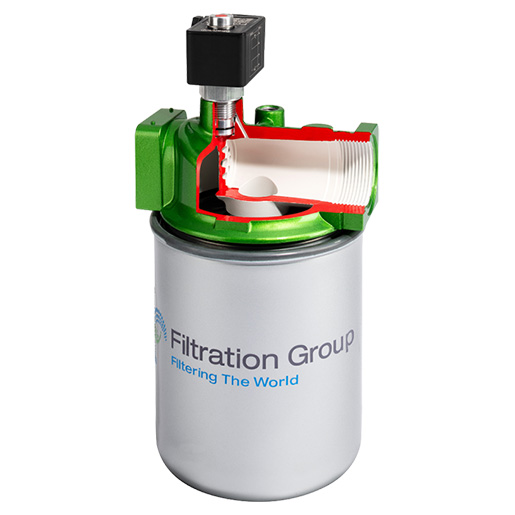

Filtration Group (formerly MAHLE) Low pressure filter / suction filter Pi 225-6 / 77665813

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

This filter can be used both as a low-pressure filter and as a suction filter. Please note the different nominal sizes.

When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded

Important note:
We supply the Mahle low pressure filter / suction filter Pi 225-6 without the filter element.
For suitable filter elements, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 3/4
Operating temperature	-10°C bis +120°C
Max. Operating pressure (bar)	10
Nominal size	63
Seal material	NBR
Filter head material	ALU
