Filtration Group Low pressure filter Pi 2214-056

Low-pressure filter Pi 2214-56
Nominal size 16 l/min
Includes:
- Bypass

159.06 € 159.06 EUR 159.06 € VAT Included

163.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77666092

Category :

Filtration Group Low Pressure Filter

Weight :

0.75 kg

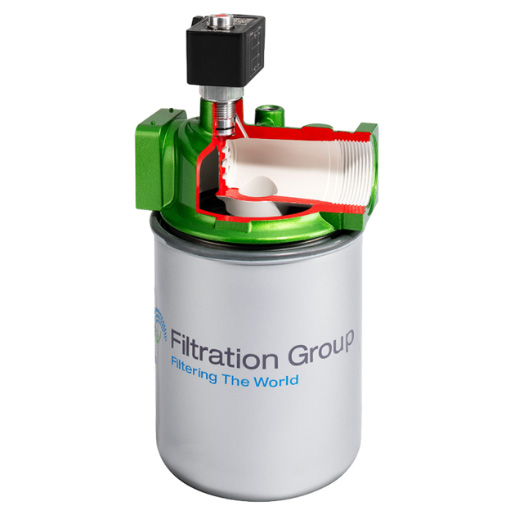

Filtration Group (formerly MAHLE) Low pressure filter Pi 2214-056 / 77666092

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Bypass

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Filtration Group (formerly MAHLE) low-pressure filter Pi 2214-056 without the filter element.
For suitable filter elements, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 11/4
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	16
Nominal size	160
Seal material	NBR
Filter housing material	Steel
Filter head material	ALU

FG-Datenblatt_Pi220_NG160_de-2

Download
