Filtration Group Low pressure filter PI 2214-069

https://www.filcom-technik.de/web/image/product.template/52290/image_1920?unique=c3c654f

Low-pressure filter Pi 2214-69
Nominal size 16 l/min
Includes:
- Electrical maintenance indicator

217.06 € 217.06 EUR 217.06 € VAT Included

228.00 € VAT Included

(217.06 € / pcs)
  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group
Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :
77666191
Category :
Low Pressure Filters
Weight :
0.94 kg

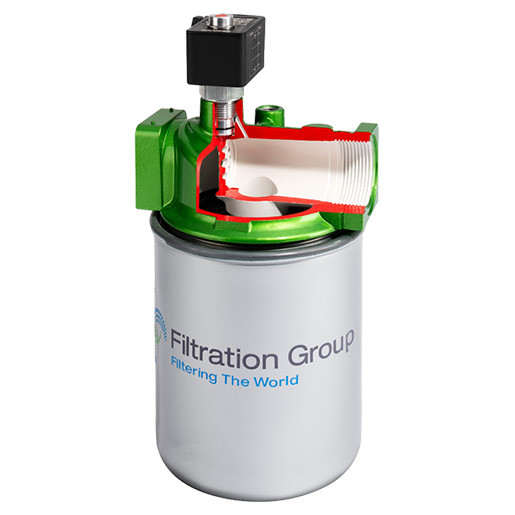

Filtration Group (formerly MAHLE) Low pressure filter Pi 2214-69 / 77666191

  • Intended for installation in pipes
  • Modular system for optimum filter selection
  • Flow-optimized design of the components, resulting in minimal pressure loss
  • Compact design means less space required
  • Electrical maintenance indicator
  • Version with threaded connections
  • Available with high-efficiency Mic or Sm-x filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded

    Important note:
    We supply the Mahle low-pressure filter Pi 2214-69 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Anschlussart Gewinde ISO 228
    Connection size G 11/4
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators elektrisch / mechanisch
    Betriebstemperatur (°C) -10°C bis +120°C
    Contact type Contamination indicator Schliesser / Oeffner
    Max. Operating pressure (bar) 16
    Nenngröße 160
    Type Contamination indicator VA Differenzdruck
    Verschmutzungsanzeige ja
    Seal material NBR
    Filter housing material Stahl
    Werkstoff Filterkopf ALU
