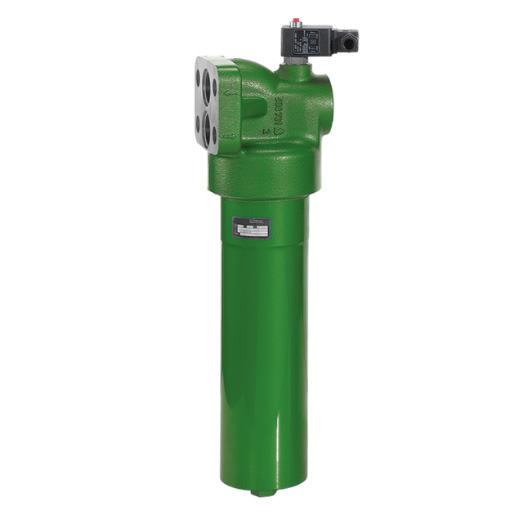

Filtration Group Medium pressure filter Pi 3408-012

https://www.filcom-technik.de/web/image/product.template/233591/image_1920?unique=64cc00e

Medium pressure filter Pi 34
Nominal size 8 l/min,
includes:
- Bypass
- Visual maintenance indicator

350.34 € 350.34000000000003 EUR 350.34 € VAT Included

368.00 € VAT Included

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group
Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :
77874381
Category :
Medium Pressure Filters
Weight :
5.55 kg

Filtration Group (formerly MAHLE) Medium pressure filter Pi 348-12 / 77874381

  • Intended for mounting on control blocks
  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Visual maintenance indicator
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle medium pressure filter Pi 348-12 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Anschlussart ANFLANSCHBAR
    Connection size DN 15
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanisch
    Betriebstemperatur (°C) -10°C bis +120°C
    Bypass opening pressure (bar) 7
    Contact type Contamination indicator Schliesser / Oeffner
    Max. Operating pressure (bar) 350
    Nenngröße 80
    Type Contamination indicator VA Differenzdruck
    Verschmutzungsanzeige ja
    Seal material NBR
    Filter housing material Stahl
    Werkstoff Filterkopf GGG
