Filtration Group High pressure filter Pi 41002-046

https://www.filcom-technik.de/web/image/product.template/233644/image_1920?unique=1b841e8

High-pressure filter Pi 41
rated size 2 l/min,
includes:
- Hole for maintenance indicator

848.95 € 848.95 EUR 848.95 € VAT Included

870.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77937543

Category :

Filtration Group High Pressure Filter

Weight :

2.50 kg

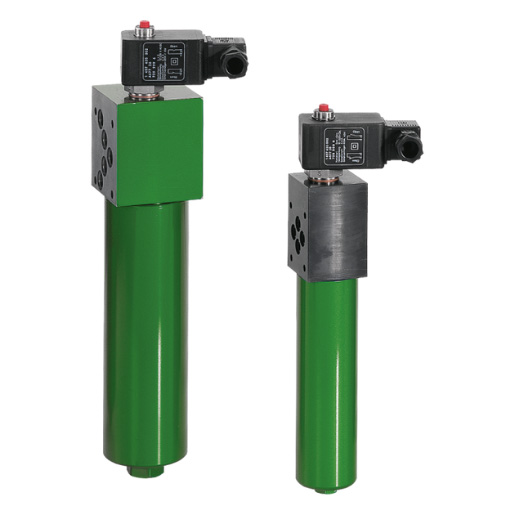

Filtration Group (formerly MAHLE) High-pressure filter Pi 412-46 / 77937543

  • Intended for mounting on control blocks
  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Hole for maintenance indicator
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Connections according to DIN 2434
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • It must be ensured that the maximum differential pressure of the filter element is not exceeded.

    Important note:
    We supply the Mahle Pi 412-46 high-pressure filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Contact type Contamination indicator with blanking plug
    Filter head material Steel
    Nominal size 20
    Filter housing material Steel
    Seal material NBR/PTFE
    Operating temperature -10°C bis +120°C
    Max. Operating pressure (bar) 315
    FG-Datenblatt_Pi410_NG20-63_de
