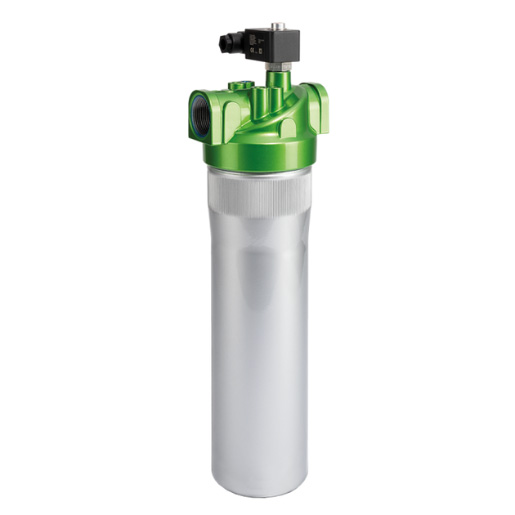

Filtration Group Low pressure filter Pi 20100-058

Low-pressure filter Pi 2 DIN 2455 - Single in-line filter,
rated size 1 l/min,
including:
- Bypass
- Electrical maintenance indicator

2,665.89 € 2665.89 EUR 2,665.89 € VAT Included

2,732.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77974769

Category :

Filtration Group Low Pressure Filter

Weight :

15.90 kg

Filtration Group (formerly MAHLE) Low pressure filter Pi 21-58 / 77974769

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Flange connections

Bypass

Electrical maintenance indicator

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High differential pressure stability and dirt holding capacity of the elements

Important note:
We supply the Mahle Pi 21-58 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange
Connection size	DN 64
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	25
Nominal size	1000
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	ALU
Filter head material	GAL

FG-Datenblatt_Pi200_NG600_de-1

Download
