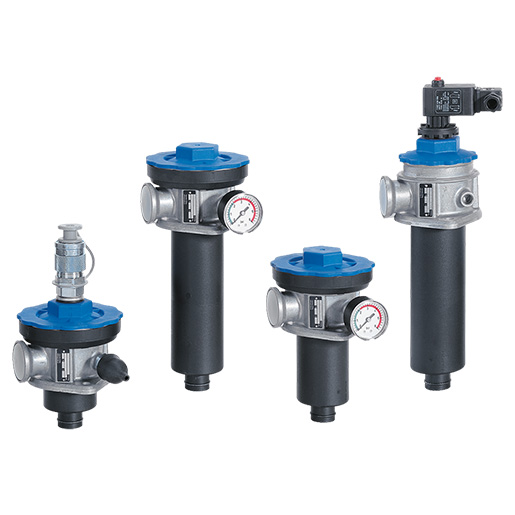

Filtration Group return line filter Pi 50006-059
Return filter Pi 5 DIN 2455
Nominal size 63 l/min,
including:
- Bypass valve 3.5 bar
- Pressure gauge
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Return line filter Pi 56-59 / 77976269
Important note:
We supply the Mahle return line filter Pi 56-59 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Anschlussart | Gewinde ISO 228 |
| Connection size | G 1 |
| Betriebstemperatur (°C) | -10°C bis +80°C |
| Bypass opening pressure (bar) | 3,5 |
| Max. Operating pressure (bar) | 10 |
| Nenngröße | 63 |
| Type Contamination indicator | Druckmanometer |
| Verschmutzungsanzeige | ja |
| Seal material | NBR |
| Filter housing material | Kunststoff |
| Werkstoff Filterkopf | ALU |
