Filtration Group Pi 50040-057

https://www.filcom-technik.de/web/image/product.template/55190/image_1920?unique=7796e26

Return filter Pi 5 DIN 2455
Nominal size 4 l/min,
including:
- Bypass valve 3.5 bar
- Visual maintenance indicator 2.2 bar

777.78 € 777.78 EUR 777.78 € VAT Included

817.00 € VAT Included

(777.78 € / pcs)

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77977028

Category :

Return Line Filters

Weight :

6.20 kg

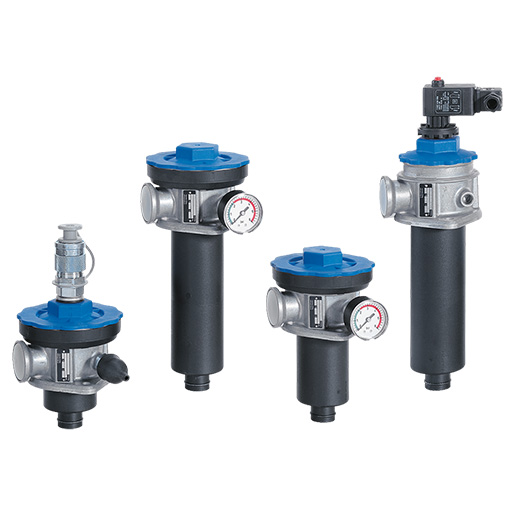

Filtration Group (formerly MAHLE) Return line filter Pi 54-57 / 7797728

  • Intended for mounting on containers
  • Modular system for optimum filter selection
  • Low space requirement due to compact design
  • Minimal pressure loss due to streamlined design of the components
  • Bypass valve 3.5 bar
  • Visual maintenance indicator 2.2 bar
  • Version with threaded or flanged connections
  • Available with high-efficiency Mic or PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High differential pressure stability and dirt holding capacity of the elements

    • Important note:
    We supply the Mahle return line filter Pi 54-57 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange ISO 6162-1
    Connection size DN 51
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +80°C
    Bypass opening pressure (bar) 3,5
    Max. Operating pressure (bar) 10
    Nominal size 400
    Type Contamination indicator VA dynamic pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material ALU
