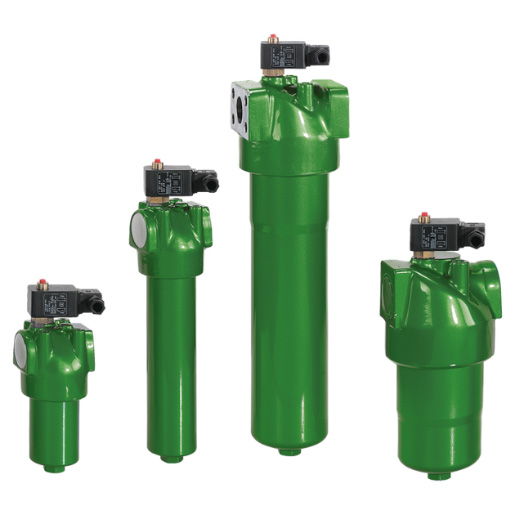

Filtration Group High pressure filter Pi 40010-015
High-pressure filter Pi 4 DIN 2455
Nominal size 1 l/min,
includes:
- Electrical maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) High-pressure filter Pi 41-15 / 77978448
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle Pi 41-15 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
Contact type Contamination indicator | Closer / Opener |
Display pressure of contamination indicator (bar) | 5 |
Evaluation of pollution indicators | electrical / mechanical |
Type Contamination indicator | VA Differential pressure |
Contamination indicator | ja |
Filter housing material | Steel |
Operating temperature | -10°C bis +120°C |
Connection type | Thread ISO 228 |
Nominal size | 100 |
Filter head material | GGG |
Connection size | G 1 |
Seal material | NBR |
Max. Operating pressure (bar) | 400 |
