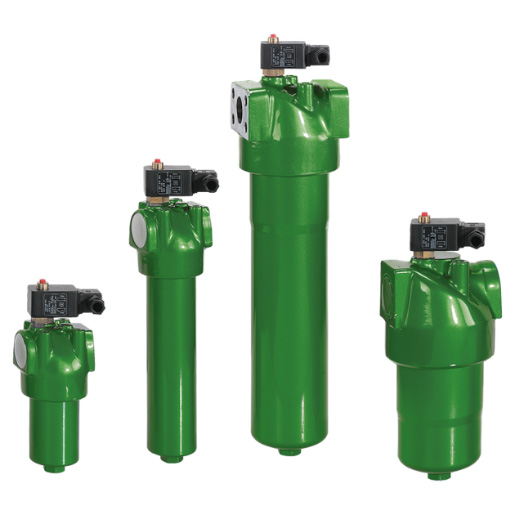

Filtration Group High pressure filter Pi 40004-012
High-pressure filter Pi 4 DIN 2455
Nominal size 4 l/min,
includes:
- Bypass
- Visual maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) High-pressure filter Pi 40004-012 / 78207227
Important note:
We supply the Mahle Pi 44-12 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Bypass opening pressure (bar) | 7 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | mechanisch |
| Type Contamination indicator | VA Differenzdruck |
| Verschmutzungsanzeige | ja |
| Filter housing material | Stahl |
| Betriebstemperatur (°C) | -10°C bis +120°C |
| Anschlussart | Gewinde ISO 228 |
| Nenngröße | 40 |
| Werkstoff Filterkopf | GGG |
| Connection size | G1/2 |
| Seal material | NBR |
| Max. Operating pressure (bar) | 400 |
