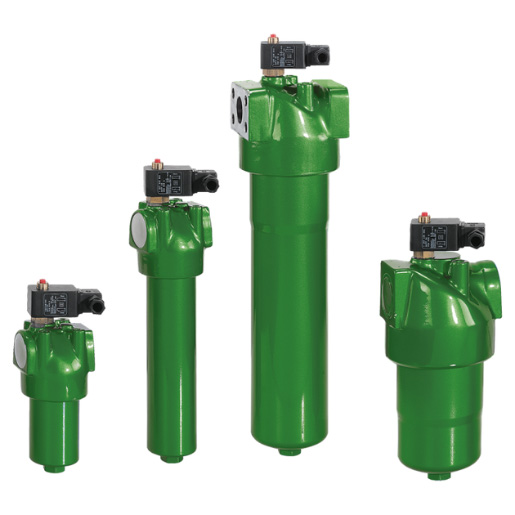

Filtration Group High pressure filter Pi 40006-011

High-pressure filter Pi 4 DIN 2455
Nominal size 63 l/min,
includes:
- Bypass
- Hole for maintenance indicator

364.95 € 364.95 EUR 364.95 € VAT Included

374.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

78207276

Category :

Filtration Group High Pressure Filter

Weight :

4.70 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 40006-011 / 78207276

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Bypass

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 46-11 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Bypass opening pressure (bar)	7
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Connection type	Thread ISO 228
Nominal size	63
Filter head material	GGG
Connection size	G 3/4
Seal material	NBR
Max. Operating pressure (bar)	400
