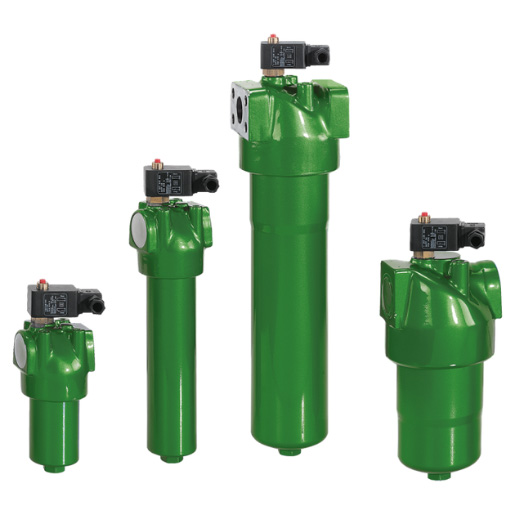

Filtration Group High pressure filter Pi 40010-010
High-pressure filter Pi 4 DIN 2455
Nominal size 1 l/min,
includes:
- Hole for maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) High-pressure filter Pi 40010-010 / 78207326
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle Pi 41-1 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Filter housing material | Steel |
| Operating temperature | -10°C bis +120°C |
| Connection type | Thread ISO 228 |
| Nominal size | 100 |
| Filter head material | GGG |
| Connection size | G 1 |
| Seal material | NBR |
| Max. Operating pressure (bar) | 400 |
