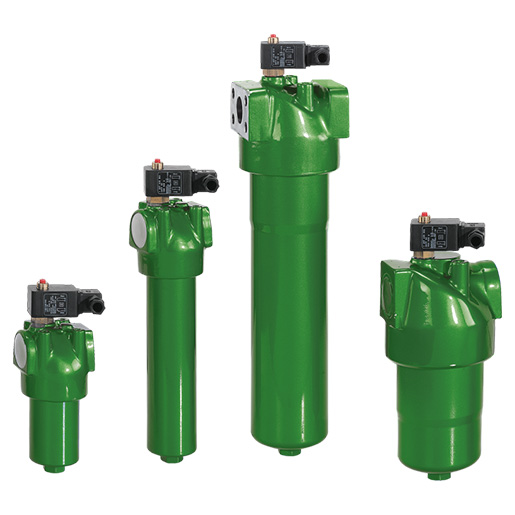

Filtration Group High pressure filter Pi 40040-011 FL

https://www.filcom-technik.de/web/image/product.template/55667/image_1920?unique=11609f6

High-pressure filter Pi 4 DIN 2455
Nominal size 4 l/min,
includes:
- Bypass
- Hole for maintenance indicator

745.70 € 745.7 EUR 745.70 € VAT Included

746.00 € VAT Included

(745.70 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

78207839

Category :

Filtration Group High Pressure Filter

Weight :

18.75 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 44-11 FL / 7827839

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle Pi 44-11 high-pressure filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange ISO 6162-2
    Contact type Contamination indicator screwed-in blind plug for VA
    Bypass opening pressure (bar) 7
    Filter housing material Steel
    Operating temperature -10°C bis +120°C
    Connection size DN 38
    Nominal size 400
    Filter head material GGG
    Seal material NBR
    Max. Operating pressure (bar) 400
