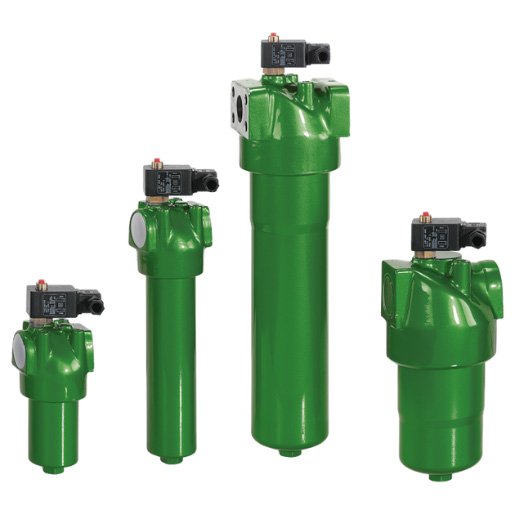

Filtration Group Medium pressure filter Pi 30006-015
Medium pressure filter Pi 3 DIN 2455
Nominal size 63 l/min,
including:
- Electrical maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Medium pressure filter Pi 30006-015 / 78208019
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle medium pressure filter Pi 36-15 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -10°C bis +120°C |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 315 |
| Nominal size | 63 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
