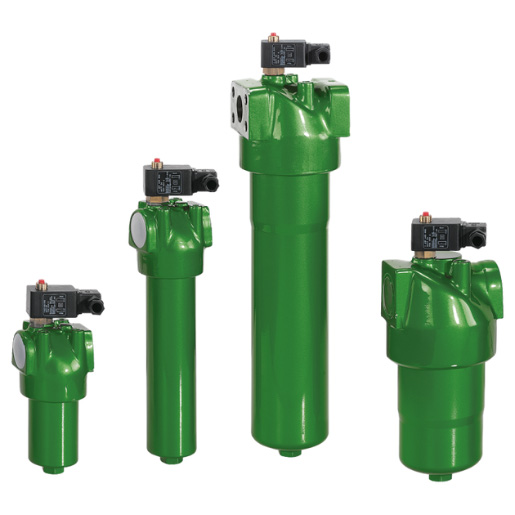

Filtration Group Medium pressure filter Pi 30010-012
Medium pressure filter Pi 3 DIN 2455
Nominal size 1 l/min,
includes:
- Bypass
- Visual maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Medium pressure filter Pi 30010-012 / 78208050
Important note:
We supply the Mahle medium pressure filter Pi 31-12 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Anschlussart | Gewinde ISO 228 |
| Connection size | G 1 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | mechanisch |
| Betriebstemperatur (°C) | -10°C bis +120°C |
| Bypass opening pressure (bar) | 7 |
| Max. Operating pressure (bar) | 315 |
| Nenngröße | 100 |
| Type Contamination indicator | VA Differenzdruck |
| Verschmutzungsanzeige | ja |
| Seal material | NBR |
| Filter housing material | Stahl |
| Werkstoff Filterkopf | GGG |
