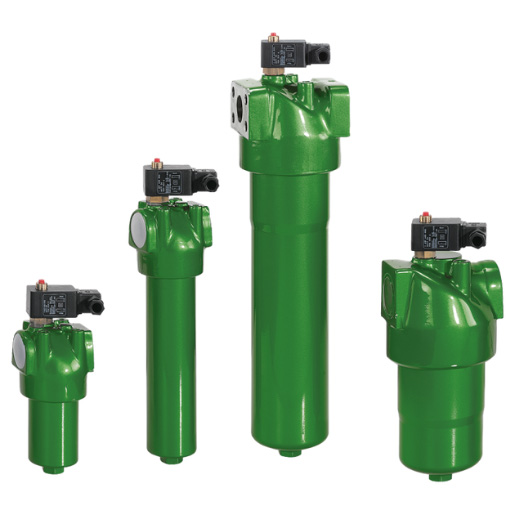

Filtration Group Medium pressure filter Pi 30016-012

Medium pressure filter Pi 3 DIN 2455
Nominal size 16 l/min,
including:
- Bypass
- Visual maintenance indicator

647.93 € 647.9300000000001 EUR 647.93 € VAT Included

664.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

78208126

Category :

Medium Pressure Filters

Weight :

10.72 kg

Filtration Group (formerly MAHLE) Medium pressure filter Pi 30016-012 / 78208126

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Threaded connection

Bypass

Visual maintenance indicator

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle medium pressure filter Pi 316-12 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G1 1/4
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	mechanical
Operating temperature	-10°C bis +120°C
Bypass opening pressure (bar)	7
Max. Operating pressure (bar)	200
Nominal size	160
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG

FG-Datenblatt_Pi3000_NG400_de
