Filtration Group Medium pressure double switching filter Pi 37040-014 FL

https://www.filcom-technik.de/web/image/product.template/233841/image_1920?unique=47aa784

Medium-pressure duplex filter Pi 37 DIN 2455
Nominal size 4 l/min,
Flange connection
Includes:
- Visual maintenance indicator

2,406.18 € 2406.18 EUR 2,406.18 € VAT Included

2,022.00 € VAT Included

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group
Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :
78208555
Category :
Duplex Filters
Weight :
41.00 kg

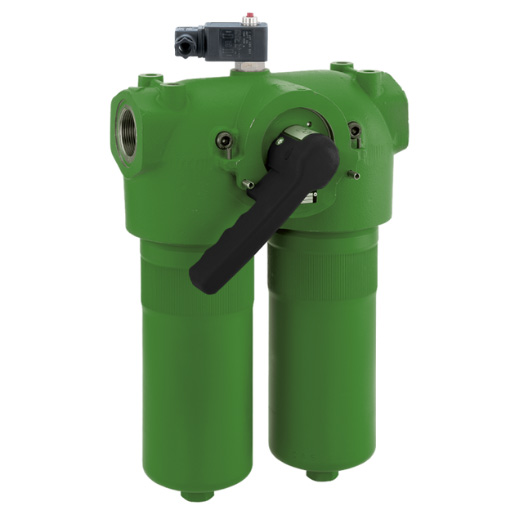

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 37040-014 FL / / 78208555

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Flange connection
  • Visual maintenance indicator
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with lever lock and pressure compensation
  • One-handed operation
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.


    Important note:
    We supply the Mahle medium-pressure duplex filter Pi 374-14 FL without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    No Specifications
    FG-Datenblatt_Pi3700_NG400_de
    Download
