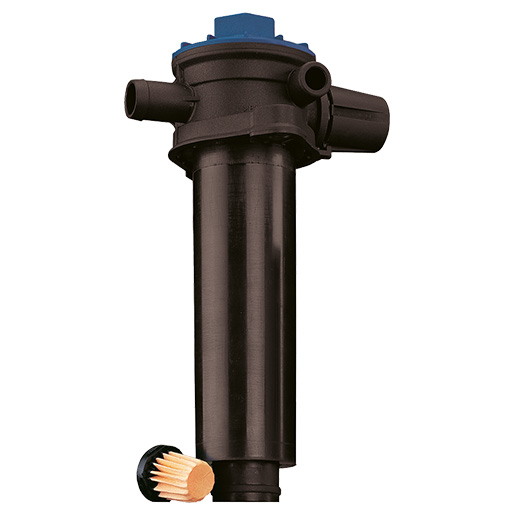

Filtration Group Return filter Pi 53005/1-145 / 79323544
Return filter Pi 53 DIN 2455
Nominal size 5 l/min,
Plastic filter head with DN2 hose connection,
including:
- Bypass 1.5 bar
- Pressure switch NC
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Return line filter Pi 535/1-145 / 79323544
Important note:
We supply the Mahle return line filter Pi 535/1-145 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Hose connection |
| Connection size | DN 20 |
| Operating temperature | -10°C bis +80°C |
| Bypass opening pressure (bar) | 1,5 |
| Max. Operating pressure (bar) | 6 |
| Nominal size | 50 |
| Type Contamination indicator | Normally closed pressure switch |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Kunststoff |
| Filter head material | ALU |
