Filtration Group High pressure filter Pi 48010-014

https://www.filcom-technik.de/web/image/product.template/234037/image_1920?unique=11609f6

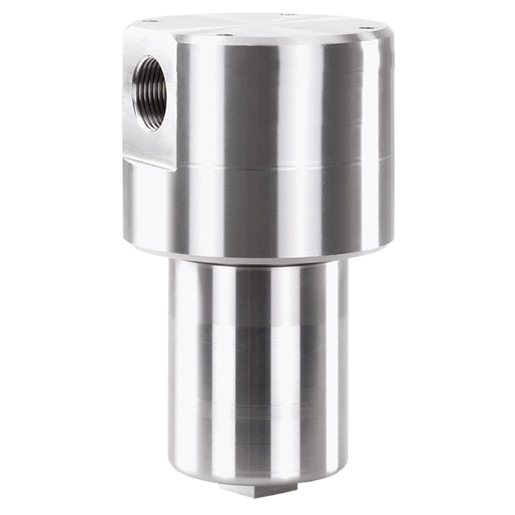

Stainless steel high-pressure filter Pi 48
Nominal size 1 l/min,
includes:
- Visual maintenance indicator

2,777.89 € 2777.89 EUR 2,777.89 € VAT Included

2,779.00 € VAT Included

(2,777.89 € / pcs)
Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

79353236

Category :

Filtration Group High Pressure Filter

Weight :

13.15 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 481-14 / 79353236

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Visual maintenance indicator
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements to DIN 2455
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • Important note:
    We supply the Mahle Pi 481-14 high-pressure filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Filter housing material 1.4401/1.4404
    Filter head material 1.4401/1.4404
    Contact type Contamination indicator Closer / Opener
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanical
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR/PTFE
    Operating temperature -10°C bis +120°C
    Connection type Thread ISO 228
    Nominal size 100
    Max. Operating pressure (bar) 450
    Connection size G 1
