Filtration Group dust filter element 852 909 TI 19/2-12,5

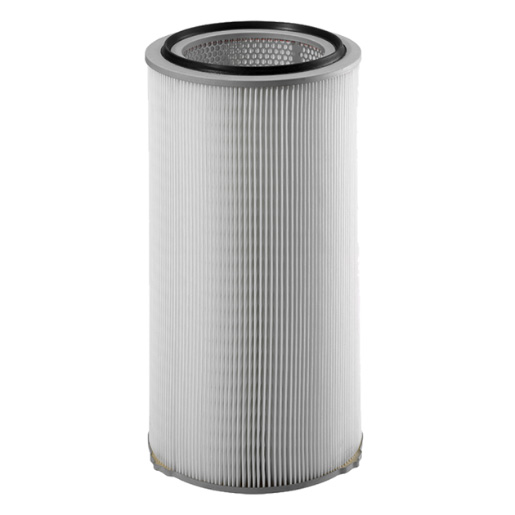

Cylindrical dust filter element
Filter material: Cellulose-polyester carrier with polypropylene meltblown
Filter area: 12.5 m²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Dust filter element 852 99 TI 19/2-12.5 / 79355181
Note:
Deviations in the volume flow values are possible due to the type of dust and gas composition.
| Outer diameter (mm) | 328 |
| Element fastening | Tie rod |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 19/2 |
| Height (mm) | 983.5 |
| Inner diameter (mm) | 216 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Polyurethane (PUR) |
