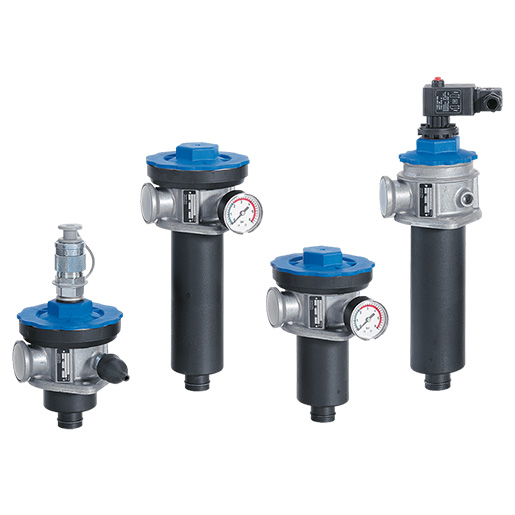

Filtration Group Return filter Pi 50006/1-089 / 79763699
Return filter Pi 5 DIN 2455
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
| Connection type | Thread ISO 228 |
| Connection size | G 1 |
| Operating temperature | -10°C bis +80°C |
| Bypass opening pressure (bar) | 3,5 |
| Contact type Contamination indicator | BE-SM; slosh protection; filling |
| Max. Operating pressure (bar) | 10 |
| Nominal size | 63 |
| Type Contamination indicator | Closer pressure switch |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Kunststoff |
| Filter head material | ALU |
