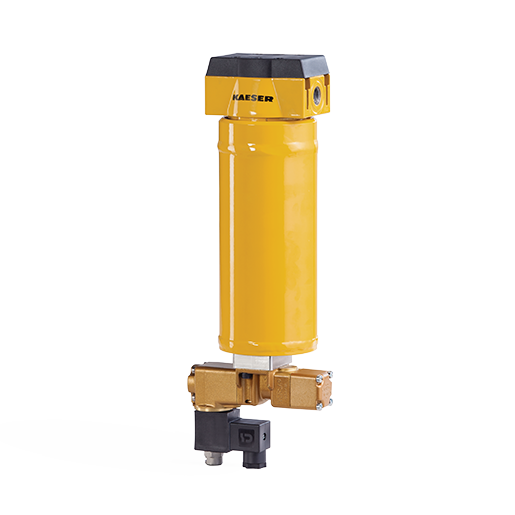

KAESER Membrane dryer KMM 2 with Purge air stop valve
The KAESER KMM membrane dryer is ideal for decentralized compressed air drying without an electrical supply. It achieves pressure dew points from +3 to -40 °C and is optionally available with an energy-saving purge air stop valve.
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
KAESER membrane dryer
KMM - Innovative, compact and efficient
The KMM membrane dryers from Kaeser are characterized by their unique flow concept and the innovative helix winding of highly efficient hollow fibre membranes. They are ideally suited for use at pressure dew points in the minus range and in areas with limited space. The compressed air loss is minimized by a precise purge air nozzle, and the optional purge air stop valve significantly increases the efficiency of the dryer, especially during idle periods.
Performance parameters for KMM:
- Volume flow: 0.04 to 3.97 m³/min
- Pressure dew point: +10 °C to -40 °C
Large partition area with minimal space requirement
Purge air stop valve increases efficiency during downtimes.
Effective drainage of water molecules inwards (flow concept)
Note:
Efficient pre-filters are essential to ensure optimum protection for membrane dryers in the KMM series. The KAESER FILTER offer the ideal solution for this. They effectively keep dirt away from the membrane fibers at an extremely low differential pressure.
| Volume flow with pressure dew point reduction +35 °C -> +3 °C (m³/min) | 0,13 |
| Volume flow with pressure dew point reduction +35 °C -> -20 °C (m³/min) | 0,08 |
| Volume flow with pressure dew point reduction +5 °C -> -20 °C (m³/min) | 0,02 |
| Purge air (m³/min) | 0,02 |
| Compressed air connection | R ⅜ |
| Min. overpressure (bar) | 4 |
| Max. Overpressure (bar) | 14 |
| Compressed air inlet temperature min. (°C) | +1 |
| Compressed air inlet temperature max. (°C) | +66 |
| Width (mm) | 105 |
| Depth (mm) | 105 |
| Height (mm) | 520 |
| Weight (kg) | 3,80 |
| Purge air stop valve | Yes |
Product variants
| Product | Price | ||
|---|---|---|---|

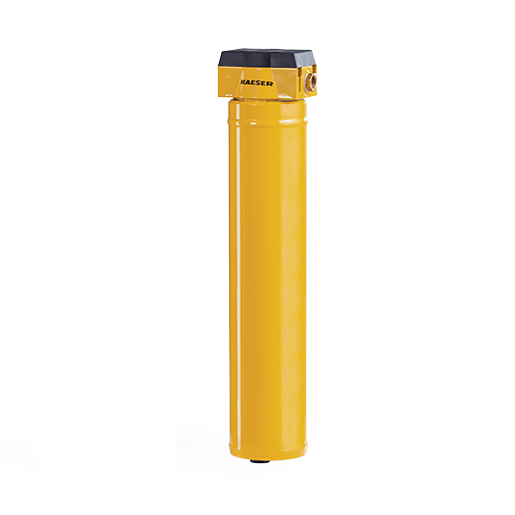

![[9.4992.1] KAESER membrane dryer KMM 2 without purge air stop valve](/web/image/product.template/103089/image_128/%5B9.4992.1%5D%20KAESER%20membrane%20dryer%20KMM%202%20without%20purge%20air%20stop%20valve?unique=7085d25)
|
The KAESER KMM membrane dryer is ideal for decentralized compressed air drying without an electrical supply. It achieves pressure dew points from +3 to -40 °C and is optionally available with an energy-saving purge air stop valve. |
1,084.39 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[102103.10141] KAESER Filter Extra model F6KE G 3/8", ECO-DRAIN 31F](/web/image/product.template/262253/image_128/%5B102103.10141%5D%20KAESER%20Filter%20Extra%20model%20F6KE%20G%203-8%22%2C%20ECO-DRAIN%2031F?unique=ef71e09)
|
The KAESER coalescence filter Extra offers the same effective filtration as the KB model, but for even higher compressed air quality. It reliably removes solid and liquid aerosols as well as ultra-fine particles, providing optimum protection for your compressed air systems. |
638.14 € | |
![[9.2948.0] KAESER wall bracket for KMM 1 - 4](/web/image/product.template/258814/image_128/%5B9.2948.0%5D%20KAESER%20wall%20bracket%20for%20KMM%201%20-%204?unique=7085d25)
|
Precisely fitting, stable wall brackets are available as an option for KAESER filters. They are simply fitted to the connection flanges. |
52.48 € | |
