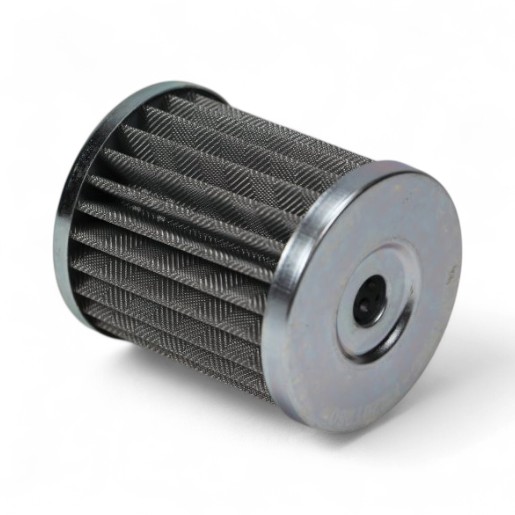

FILTREC filter element for pressure filter D220T250
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter D220T250 - stainless steel wire mesh, 250µm
The FILTREC filter element for pressure filter D220T250 with stainless steel wire mesh filter medium, 250 µm filter fineness, NBR seal and max. 4 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 4 |
| Outer diameter (mm) | 70 |
| Height (mm) | 83 |
| Inner diameter (mm) | 29 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 250 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 70 mm |
| B | 12.5 mm |
| C | 29 mm |
| D | 80 mm |
| E | 3 |
| F | 83 mm |
