FILTREC replacement filter element for Hydac 02064625
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 02064625 - quality from Italy
This FILTREC replacement filter element with stainless steel wire mesh filter medium, 25 µm filter fineness, NBR seal and max. 20 bar differential pressure is the high-quality alternative to the Hydac 02064625. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 60,00 |
| Height (mm) | 228.5 |
| Inner diameter top (mm) | 36 |
| Inner diameter bottom (mm) | 34,2 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 25 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |

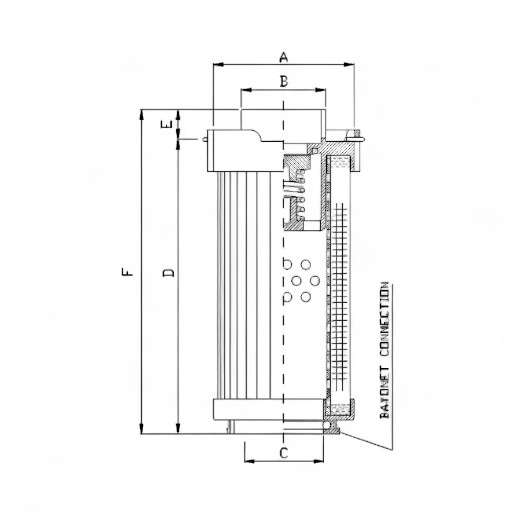

| A | 60 mm |
| B | 36 mm |
| C | 342 |
| D | 215 |
| E | 135 |
| F | 2285 |
