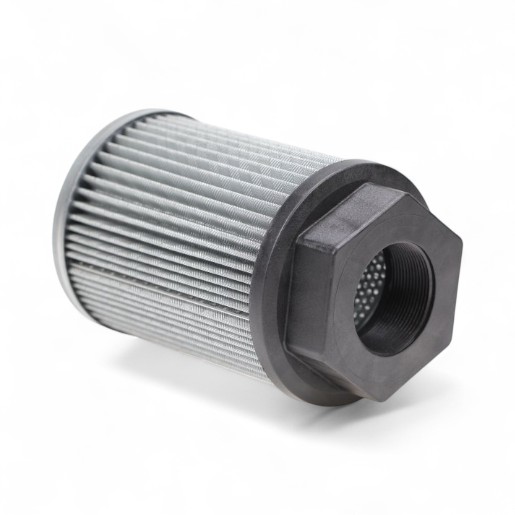

FILTREC suction filter (screw-on element) FS180B8T250
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter FS180B8T250 - stainless steel wire mesh, 250µm
The FILTREC filter element for suction filter FS180B8T250 with stainless steel wire mesh filter medium, 250 µm filter fineness, NBR seal and max. 1 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 1 |
| Outer diameter (mm) | 131 |
| Height (mm) | 202 |
| Connection thread | 2" BSP |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 250 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -20°C to +100°C |
| A | 2" BSP |
| B | 131 mm |
| C | 202 mm |
| D | 98 mm |
| E | 9 mm |
