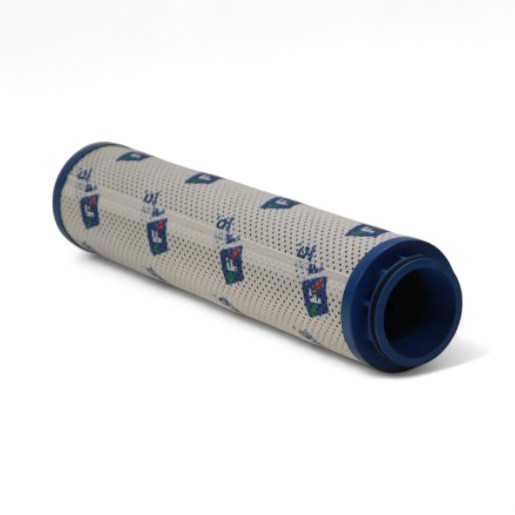

FILTREC hydraulic filter element U132G01V/ESD
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element U132G01V/ESD - glass fiber, 4µm
The FILTREC filter element for filter element U132G01V/ESD with glass fiber filter medium, 4µm filter fineness, FKM seal and max. 10 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 79 |
| Height (mm) | 367.5 |
| Inner diameter top (mm) | 25 |
| Inner diameter bottom (mm) | 63,5 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß<4=200 / ß4=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 79 mm |
| B | 25 mm |
| C | 635 |
| D | 3435 |
| E | 14 mm |
| F | 3675 |
