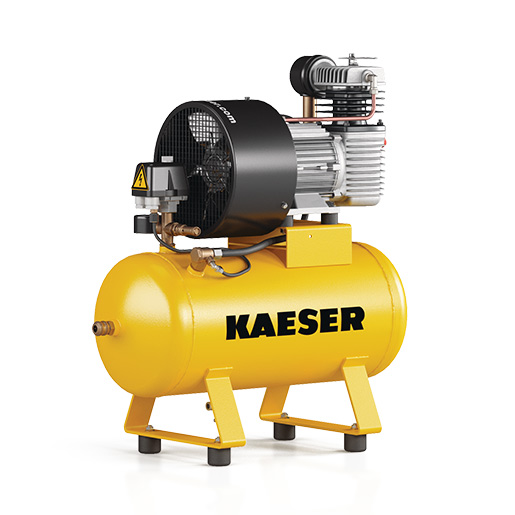

KAESER Industrial Reciprocating compressor model KCT 110-25 (horizontal) oil-free
Volume flow at 6 bar: 59 l/min | Maximum overpressure: 7 bar | Pressure tank: 24 liters | Electrical connection: 230 V / 1 Ph / 50 Hz
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
1.5370.2Category :
KAESER oil-free industrial compressorsWeight :
40.00 kgDelivery area :
GermanyDirect-coupled systems:
- very compact design with direct coupling between drive motor and compressor block
- Very durable thanks to Teflon piston rings and low speed (15 1/min)
- Compressed air tank with internal coating
| Volume flow at 6 bar (l/min) | 59 |
| Max. Overpressure (bar) | 7 |
| Rated power drive motor (kW) | 0,75 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 24 |
| Emission sound pressure level (dB(A)) | 68 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 640 |
| Depth (mm) | 290 |
| Height (mm) | 690 |
| Weight (kg) | 40 |
| Design | stationary |
